Description

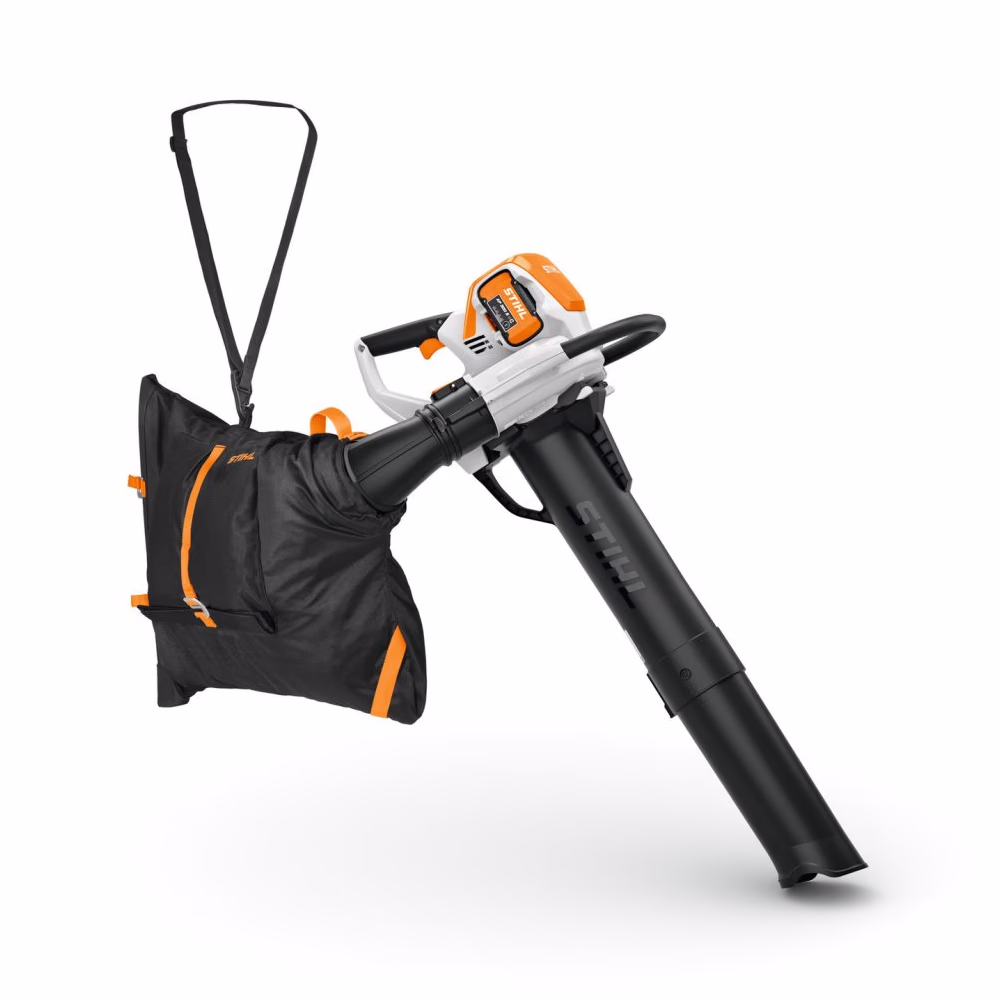

STIHL SHA 140 Battery Vacuum Shredder is a battery-powered vacuum shredder built for tough, professional work. It handles leaves, grass, and hedge trimmings across surfaces like asphalt, concrete, gravel, lawns, and flowerbeds—with reliable power right through the battery’s charge thanks to its intelligent constant-power electronics.
You can adjust suction smoothly using the variable-speed control, and when you need extra performance, simply engage the boost function via the trigger for maximum suction. Once vacuumed, the debris is shredded on the spot by strong metal blades—reducing material volume and helping fill the 55-litre collection bag efficiently.
The bag benefits from STIHL’s Air Flow Management design: ventilation openings maintain constant suction regardless of how full or dirty the bag gets. Emptying the bag is quick and hassle-free—tool-free removal and sturdy metal buckles make the bag easy to detach and open.
Maintenance is simplified too. The unit opens without tools for cleaning, and the wide-opening suction tube helps clear clogs easily. With its IPX4 splash-proof rating, the SHA 140 stays effective even in rainy or wet conditions.
Thoughtfully designed for comfort, the wide handle and well-positioned collection bag reduce operator fatigue during long shifts. Plus, it’s future-ready—the SHA 140 is compatible with the STIHL Smart Connector 2A, allowing integration with the STIHL Connected app for tracking runtime and performance data.
Key Features
- High suction power with smooth, variable-speed control and trigger-activated boost
- Built-in metal shredder blades reduce debris size right in the machine
- 55 L collection bag with Air Flow Management ensures steady suction even when full
- Tool-free access and wide openings for fast cleaning and clog removal
- IPX4-rated splash-proof design for reliable use in wet conditions
- Ergonomic handle and bag placement reduces fatigue during extended use
Specifications
Rated Voltage | 36 V |
---|---|
Cordless Power System | AP |
Recommended Battery | AP 300 S |
Device Weight (without battery) | 5.1 kg 1) |
Collection Bag Volume | 55 l |
Air Throughput in Suction Mode | 910 m³/h |
IPX Rating | IPX4 |
Min. Battery Working Time (AP 100) | 12 min 2) |
Max. Battery Working Time (AP 100) | 20 min 2) |
Min. Battery Working Time (AP 200) | 25 min 2) |
Max. Battery Working Time (AP 200) | 39 min 2) |
Min. Battery Working Time (AP 200 S) | 25 min 2) |
Max. Battery Working Time (AP 200 S) | 39 min 2) |
Min. Battery Working Time (AP 300) | 31 min 2) |
Max. Battery Working Time (AP 300) | 48 min 2) |
Min. Battery Working Time (AP 300 S) | 38 min 2) |
Max. Battery Working Time (AP 300 S) | 60 min 2) |
Min. Battery Working Time (AP 500 S) | 44 min 2) |
Max. Battery Working Time (AP 500 S) | 71 min 2) |
Sound Pressure Level in Blowing Mode | 83 dB(A) 3) |
Sound Pressure Level in Suction Mode | 83 dB(A) |
Sound Power Level in Blowing Mode | 96 dB(A) 3) |
Sound Power Level in Suction Mode | 96 dB(A) |
Vibration Value on the Right in Blowing Mode | 0.7 m/s² 4) |
