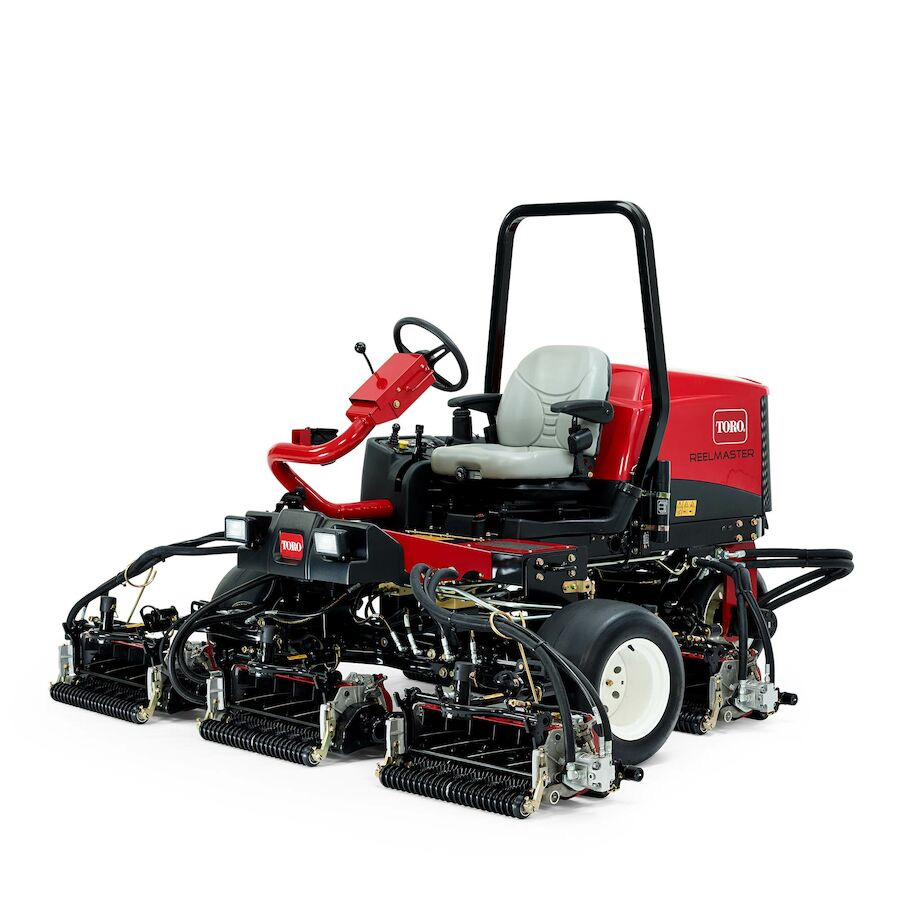

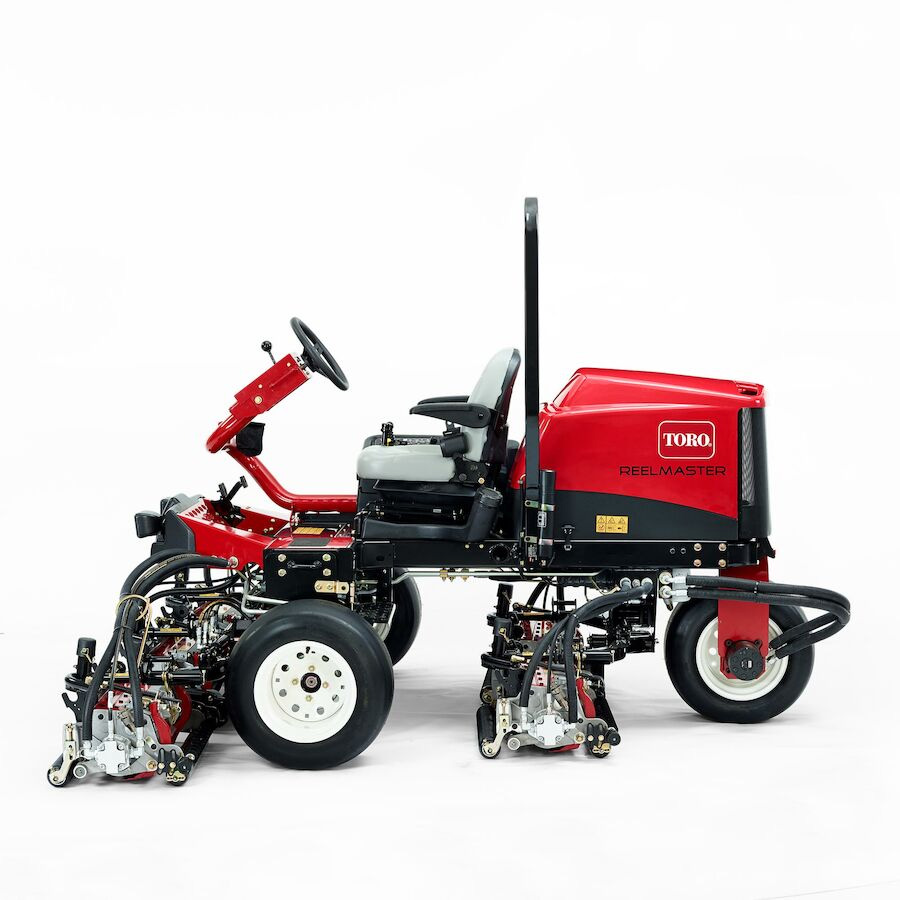

TORO Reelmaster 3555-D Large Area Reel Mower
$68,274.87
TORO Reelmaster 3555-D large area reel mower is designed to deliver exceptional productivity, efficiency, and simplicity for sports fields and golf courses. With a 100-inch cutting width and a lightweight design, this mower is over 20% lighter and more compact than traditional Toro reel mowers, ensuring high manoeuvrability and reduced turf compaction.
Displayed Pricing is Recommended Retail Price of the basic unit only. Please contact our Commercial Product Specialist through the “Enquire About This Product” button to discuss pricing and the many options which can be configured for this Commercial Product.
Please use the ENQUIRE ABOUT THIS PRODUCT form to check availability before processing an order.
Description
TORO Reelmaster 3555-D large area reel mower is designed to deliver exceptional productivity, efficiency, and simplicity for sports fields and golf courses. With a 100-inch cutting width and a lightweight design, this mower is over 20% lighter and more compact than traditional Toro reel mowers, ensuring high manoeuvrability and reduced turf compaction.
Lightweight and Turf-Friendly
Weighing 20 percent less than comparably equipped Toro 4-wheel drive reel machines, the Reelmaster 3555-D strikes the perfect balance between turf friendliness and productive performance. The lighter weight not only decreases turf compaction but also enhances maneuverability, allowing for a gentler touch on your turf.
Common Platform for Ease of Use
Sharing a common platform with other popular Toro mowers, the Reelmaster 3555-D reduces operator training time and increases overall productivity. This commonality ensures that operators can quickly and easily transition between different Toro models, enhancing operational efficiency.
Quiet Operation
Designed with a low noise profile, the Reelmaster 3555-D operates at only 84 dB(A) at the operator’s ear and 73 dB(A) during a 25-foot drive-by. This quiet operation makes it an excellent choice for areas where noise reduction is essential.
Highly Maneuverable
The three-wheel design of the Reelmaster 3555-D maximizes maneuverability, making it perfect for tight turns and intricate mowing patterns. Turf-friendly tires significantly reduce the potential for turf tear, preserving the pristine condition of your grounds. With a 100-inch cutting width and speeds of up to 7 mph (11.3 km/h), the 3555-D ensures fast and effective mowing.
Powerful Performance
Equipped with a 24.8 hp (18.5 kW) Kubota diesel engine, the Reelmaster 3555-D offers ample power to tackle hills and operate additional features like groomers and rear roller brushes. Despite its power, it uses less fuel per acre than traditional fairway mowers, making it an economical choice.
Innovative Drive System
The Series/Parallel 3-wheel drive system provides power to at least two wheels at all times, ensuring impressive traction in hilly and wet conditions with minimal wheel slip. This system is gentle on the turf while providing the necessary power for demanding mowing conditions.
Superior Cutting Quality
The Reelmaster 3555-D features Dual Precision Adjustment (DPA) cutting units with Toro’s EdgeSeries™ reels, delivering a consistent, high-quality cut and superior after-cut appearance. The improved reel edge retention reduces maintenance, ensuring that your mower remains effective and efficient over time.
Key Features:
- Cutting Width: 100 inches (2.5 meters)
- Engine: 24.8 hp (18.5 kW) Kubota diesel
- Noise Level: 84 dB(A) at operator’s ear, 73 dB(A) at 25-foot drive-by
- Speed: Up to 7 mph (11.3 km/h)
- Weight: 20% lighter than traditional models
- Drive System: Series/Parallel 3-wheel drive for improved traction
- Cutting Units: DPA with EdgeSeries™ reels for high-quality cuts
The TORO Reelmaster 3555-D is the perfect solution for those seeking a high-performance, efficient, and user-friendly mower that delivers exceptional results while being gentle on the turf.
Specifications
| Armrests | Standard |
|---|---|
| Battery | 12V |
| Bedknife Adjustment | Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment. |
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial or forward swept reels. |
| Clip Frequency/Backlapping | 5″ reel 2,350 (+/- 150) rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping. |
| Controls | Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED headlight switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever. |
| Cooling System Description | Aluminum side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 5.25 quart (4.9 liter) capacity. |
| Cup Holder | Standard |
| Cutting Unit Accessories | Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets |
| Cutting Unit Lift/Lower | Hydraulic – front and rear cutting unit lift/lower are sequenced for uniform starting and ending points. |
| Cutting Unit Type/Configuration | Five hydraulically driven, balanced, DPA cutting Units. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance. |
| Drivetrain | Diesel |
| Electrical System | Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities. |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 7.5 U.S. gal. (28.4 L) |
| Fuel Filter | 10 micron spin-on filter with integral water separator. |
| Gauges/Instrumentation | Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off). |
| Ground Speed – Forward | 0 – 10 mph (0 – 16.1 km/h) |
| Ground Speed – Reverse | 0 – 3.5 mph (0 – 5.6 km/h) |
| Height | 79″ (200 cm) |
| Height of Cut Range | 8-Blade: 0.5″ – 1.5″ (13 mm – 38 mm) 11-Blade: 0.25″ – 0.75” (6 mm -19 mm) |
| Hydraulic Fluid Capacity | 6 U.S. gal. (22.7 L) |
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid |
| IntelliDash™ Capable | Yes |
| Interlocks | Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches. |
| Lighting | Standard |
| Main Frame/Chassis | Formed steel, welded steel and steel tubing. |
| Max Slope Angle | Refer to operator’s manual. |
| Mowing Speed | 0 – 7 mph (0 – 11.3 km/h) |
| Number of Blades | 11, 8 |
| Oil Capacity | 3.5 U.S. qt. (3.3 L) |
| Oil Cooler Description | Pressurized lubrication system. |
| Optional Accessories | Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon) |
| Overall Width | 112″ (274 cm) |
| Parking/Service Brakes | Hydrostatic service brake. Hand-operated parking brake. |
| Power Steering | Yes |
| Power Train (Engine Description) | Kubota® liquid-cooled diesel, 3-cylinder, 24.8 hp (18.5 kW) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 68.5 cu. in. (1123 cc). Peak torque: 57.2 lbs-ft @ 2200 RPM. Tier 4 and Stage V compliant. |
| Product Length | 105″ (266 cm) |
| Reel Diameter | 5 in. (12.7cm) |
| Reel/Cylinder Drive | Hydraulic |
| Rollers | Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available. |
| Safety/Operator Safety | 2-post ROPS and retractable seat belts standard. |
| Seat | Two-piece premium commercial two-tone grey vinyl with two armrests, mechanical suspension standard. |
| Starting | Switch |
| Steering System Description | Hydraulic power steering, tilt wheel. |
| Tires – Front | 22″ x 12″ – 12″, 4-ply, No Tread |
| Tires – Rear | 22″ x 12″ – 12″, 4-ply, No Tread |
| Tool Box | Standard |
| Traction Drive | 3WD |
| Traction Drive (System) | Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse. |
| Transport Width | 91″ (231 cm) |
| Weight | 1,655 lbs. (751 kg) with no cutting units. 2,280 lbs. (1,034 kg) with (5) 5″ reels, 22″ width, 8-blade cutting units. |
| Width of Cut | 100″ (254 cm) |
