TORO Reelmaster 3575-D Large Area Reel Mower
CALL FOR PRICE

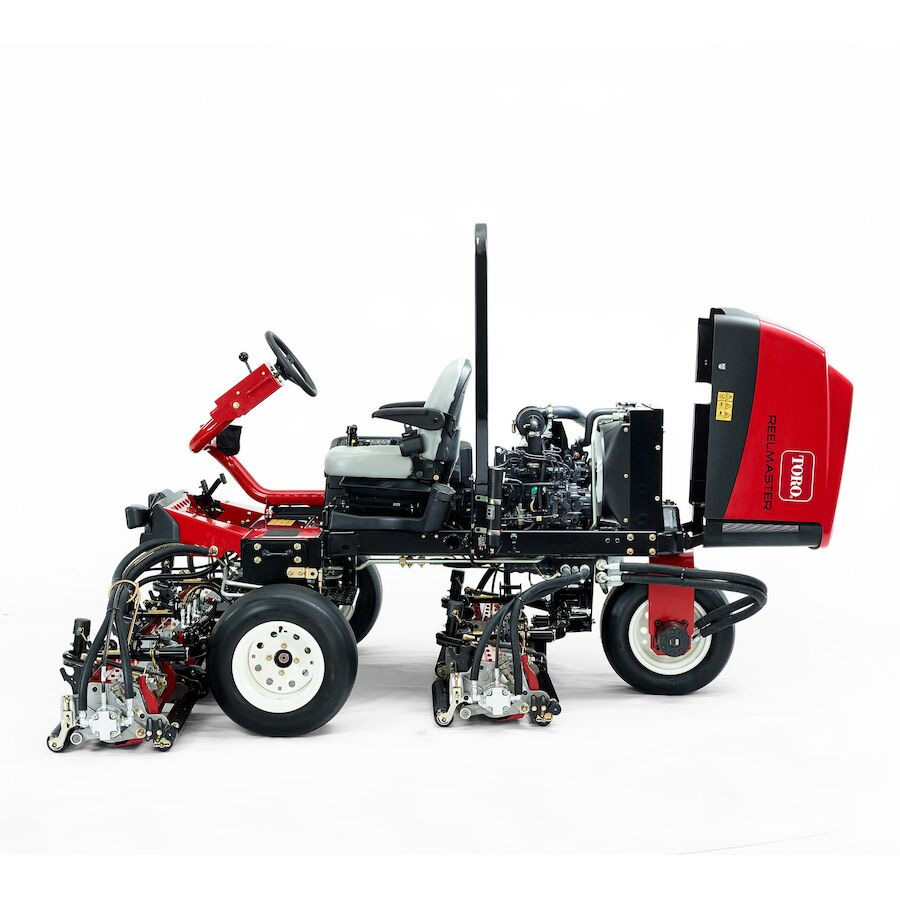

TORO Reelmaster 3575-D large area reel mower is designed to deliver exceptional productivity, efficiency, and simplicity for sports fields and golf courses. With a 100-inch cutting width and a lightweight design, this mower is over 20% lighter and more compact than traditional Toro reel mowers, ensuring high manoeuvrability and reduced turf compaction.
Please use the ENQUIRE ABOUT THIS PRODUCT form to check availability before processing an order.
Description
TORO Reelmaster 3575-D 7-inch reel mower offers unmatched productivity, efficiency, and simplicity for sports fields and fairways. With a cutting width of 100 inches and a lighter weight, this mower is designed to be over 20% lighter and significantly more compact than traditional Toro reel mowers. Experience the high performance you expect from Toro in a highly maneuverable size that also reduces turf compaction.
Key features include:
- Lightweight Design: The Reelmaster 3575-D is 20% lighter than a comparably equipped Toro 4-wheel drive reel machine, providing the perfect blend of turf friendliness and productive performance.
- Common Platform: This mower shares a common platform with other popular Toro models, reducing operator training time and boosting productivity.
- Quiet Operation: Designed with a low noise output of only 84 dB(A) at the operator’s ear and 73 dB(A) at a 25-foot drive-by.
- Three-Wheel Design: Enhances maneuverability and maximizes productivity. The smooth, turf-friendly tires minimize turf tear during tight turns.
- Impressive Cutting Width and Speed: A 100-inch (2.5 m) cutting width and mowing speeds of up to 7 mph (11.3 km/hr) ensure fast and effective mowing.
- Powerful Engine: Equipped with a 24.8 hp (18.5 kW) Kubota diesel engine, the Reelmaster 3575-D provides ample power for climbing hills and operating groomers and rear roller brushes, while using less fuel per acre compared to traditional fairway mowers.
- Innovative Drive System: The Series/Parallel 3-wheel drive system ensures power is delivered to at least two wheels at all times, offering excellent traction in hilly and wet conditions with minimal wheel slip, making it gentle on the turf.
- Dual Precision Adjustment (DPA) Cutting Units: Featuring Toro’s EdgeSeries™ reels, these cutting units deliver a consistent, high-quality cut and superior after-cut appearance, while reducing maintenance needs thanks to improved reel edge retention.
The TORO Reelmaster 3575-D combines advanced engineering with thoughtful design to provide a superior mowing experience, making it an ideal choice for maintaining sports fields and fairways.
Specifications
| Armrests | Standard |
|---|---|
| Battery | 12V |
| Bedknife Adjustment | Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment. |
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial or forward swept reels. |
| Cab Unit | N/A |
| Clip Frequency/Backlapping | 7″ reel 1,600 rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping. |
| Controls | Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED headlight switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever. |
| Cooling System Description | Aluminum side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 5.25 quart (4.9 liter) capacity. |
| Cup Holder | Standard |
| Cutting Unit Accessories | Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets |
| Cutting Unit Lift/Lower | Hydraulic – front and rear cutting unit lift/lower are sequenced for uniform starting and ending points. |
| Cutting Unit Type/Configuration | Five hydraulically driven, balanced, DPA cutting Units. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance. |
| Drivetrain | Diesel |
| Electrical System | Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities. |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 7.5 U.S. gal. (28.4 L) |
| Fuel Filter | 10 micron spin-on filter with integral water separator. |
| Gauges/Instrumentation | Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off). |
| Ground Speed – Forward | 0 – 10 mph (0 – 16.1 km/h) |
| Ground Speed – Reverse | 0 – 3.5 mph (0 – 5.6 km/h) |
| Height | 81″ (206 cm) |
| Height of Cut Range | 8-Blade: 0.5″-2.0″ (13 mm – 51 mm) 11-Blade: 0.25″- 0.75″ (6 mm – 19 mm) |
| Hydraulic Fluid Capacity | 6 U.S. gal. (22.7 L) |
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid |
| IntelliDash™ Capable | Yes |
| Interlocks | Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches. |
| Lighting | Standard |
| Main Frame/Chassis | Formed steel, welded steel and steel tubing. |
| Max Slope Angle | Refer to operator’s manual. |
| Mowing Speed | 0 – 7 mph (0 – 11.3 km/h) |
| Number of Blades | 11, 8 |
| Oil Capacity | 3.5 U.S. qt. (3.3 L) |
| Oil Cooler Description | Pressurized lubrication system. |
| Optional Accessories | Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon) |
| Overall Width | 112″ (274 cm) |
| Parking/Service Brakes | Hydrostatic service brake. Hand-operated parking brake. |
| Power Steering | Yes |
| Power Train (Engine Description) | Kubota® liquid-cooled diesel engine, 3-cylinder, 24.8 hp (18.5 kW) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 68.5 cu.in. (1123 cc). Peak torque: 57.2 lbs-ft @ 2200 RPM. Tier 4 and Stage V compliant. |
| Product Length | 105″ (266 cm) |
| Reel Diameter | 7 in. (17.8 cm) |
| Reel/Cylinder Drive | Hydraulic |
| Rollers | Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available. |
| Safety/Operator Safety | 2-post ROPS and retractable seat belts standard. |
| Seat | Mechanical suspension standard. |
| Starting | Switch |
| Steering System Description | Hydraulic power steering, tilt wheel. |
| Tires – Front | 22″ x 12″ – 12″, 4-ply, No Tread |
| Tires – Rear | 22″ x 12″ – 12″, 4-ply, No Tread |
| Tool Box | Standard |
| Traction Drive | 3WD |
| Traction Drive (System) | Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse. |
| Transport Width | 91″ (231 cm) |
| Weight | 1,755 lbs. (796 kg) with no cutting units. 2,550 lbs. (1,156 kg) with (5) 5″ reels, 22″ width, 8-blade cutting units. |
| Width of Cut | 100″ (254 cm) |
