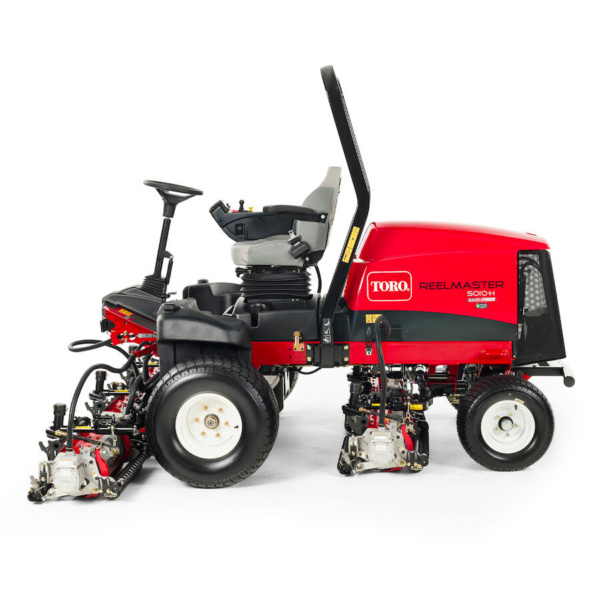

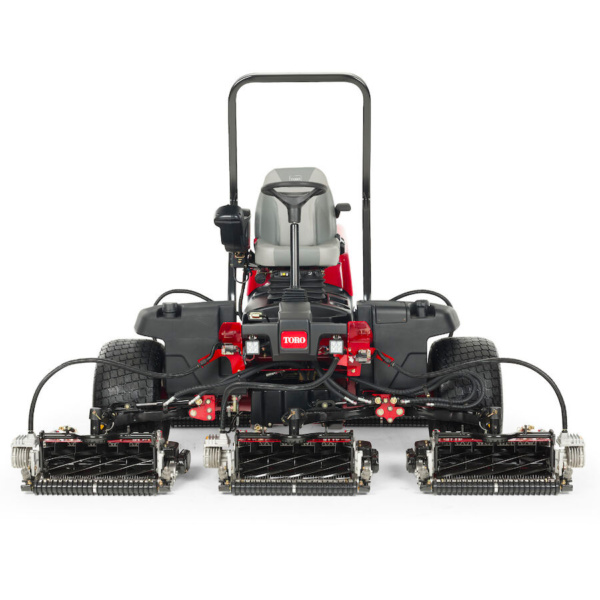

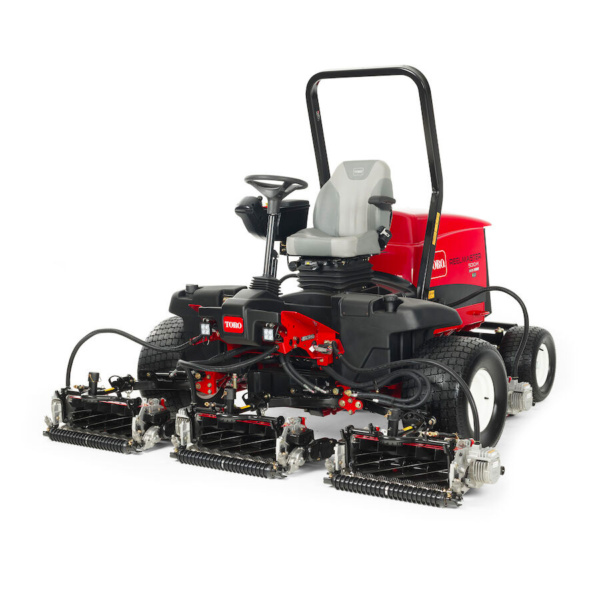

TORO Reelmaster 5010-H Large Area Reel Mower

Description

TORO Reelmaster 5010-H large area reel mower is the industry’s first and only fairway mower equipped with a true hybrid drive system.

TORO Reelmaster 5010-H, the industry’s first and only fairway mower equipped with a true hybrid drive system. This revolutionary mower utilizes a Kubota® 24.8 hp diesel engine alongside an in-line motor generator and a self-recharging 48-volt battery pack. Together, these power sources form Toro’s patented PowerMatch™ hybrid power delivery system, ensuring seamless power distribution to both the vehicle and the cutting units.

PowerMatch™ Hybrid Technology
The PowerMatch™ system intelligently matches the machine’s power output to the mowing conditions. For hilly terrains and challenging mowing tasks, the Reelmaster 5010-H diverts the cutting unit load from the engine to the battery pack. When additional power is needed, the battery pack boosts the engine power, providing the machine with the equivalent of over 40 horsepower. This efficient power management results in an average fuel saving of 20%, reducing operating costs and minimizing the mower’s carbon footprint.

Advanced Cutting Performance
Equipped with Dual Precision Adjustment (DPA) cutting units and Toro’s EdgeSeries™ reels, the Reelmaster® 5010-H delivers a consistently high-quality cut with a superior after-cut appearance. The advanced reel edge retention technology reduces maintenance needs, ensuring long-lasting performance.

Smart Power® and Electronic Cruise Control
The Smart Power® system automatically adjusts the mower’s ground speed according to the terrain and cutting conditions, safeguarding the electric reel drive components and maintaining the desired reel speed for a uniform cut. The switch-activated electronic cruise control helps maintain a consistent speed, reducing operator fatigue during long mowing sessions.

Innovative Electric Motors
Replacing traditional hydraulic cutting motors with electric motors has significantly reduced potential leak points. The remaining hydraulic lines in the vehicle and cutting unit lift system are mainly hard lines or limited-movement hoses, resulting in fewer service intervals. The electric reel circuit requires no scheduled maintenance, further lowering the cost of ownership.

Efficient and Precise Cutting Units
The Reelmaster® 5010-H features cutting units with EdgeSeries™ reels that ensure precise and consistent reel speed across all five units. The low-drag seals and low-friction bearings enhance wear resistance and reduce the horsepower needed to operate the decks, contributing to overall fuel efficiency.

User-Friendly Control and Diagnostics
The InfoCenter™ display simplifies maintenance and diagnostics for technicians. The onboard LCD provides system information alerts, service reminders, diagnostics, fault codes, and adjustments for both the vehicle and cutting units. This precision control system allows operators to monitor and adjust reel speed and clip rate for optimal performance.

48-Volt Battery Pack
The self-recharging 48-volt battery pack consists of four 12-volt Absorbed Glass Mat (AGM) batteries, which are maintenance-free and sealed. Designed for long life with shallow discharge and recharge cycles, these batteries are similar to those used in automotive start-stop hybrids and are expected to last for years under typical golf course usage.

Experience unparalleled performance and unmatched quality of cut with the Toro Reelmaster® 5010-H Large Area Reel Mower. This innovative mower combines advanced hybrid technology with user-friendly features, making it the ideal choice for maintaining large fairway areas efficiently and sustainably.
