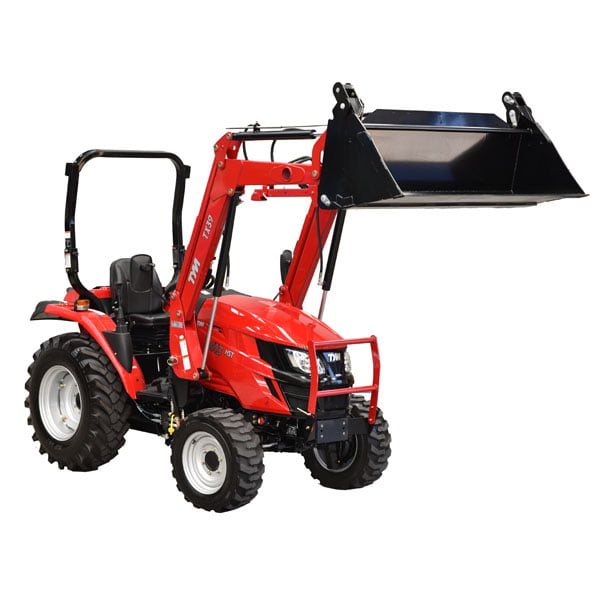

TYM T413 HST – 40HP Tractor Front End Loader

The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material.

Please use the ENQUIRE ABOUT THIS PRODUCT form to check availability before processing an order.
Category:
TYM

Description

TYM T413 HST – 40HP Front End Loader’s mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material.

  • Loader is a mechanical level lift design
  • The arms are made from tapered segments providing maximum strength with optimal pin weight
  • Pins are plated and greaseable
  • The loader is quick-detach to the tractor via simple quick release pins
  • Integrated stand is provided for loader storage on hard surfaces
  • The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

Specifications

Loader model TX3500H
Tractor models T413 HST ROPS, T413 CAB
A. Maximum lift height 2,597mm
B. Clearance with attachment level 2,332mm
C. Clearance with attachment dumped – 45 degrees 1,864mm
D. Reach at maximum height – 45 degrees 554mm
E. Maximum dump angle 42°
F. Reach with attachment on ground 1,792mm
G. Attachment rollback angle 35°
H. Digging depth below grade 111mm
J. Overall height in carry position 1,550mm
L. Depth of attachment – to back of inner shell 579mm
M. Height of attachment 563mm
N. Depth of attachment – to pivot pin 801mm
Lift capacity to full height of pivot pins 926kg
Breakout force at ground level, pivot pins 1,556kg
Rated operating load / Counter weight on 3PL 450kg / 350kg
