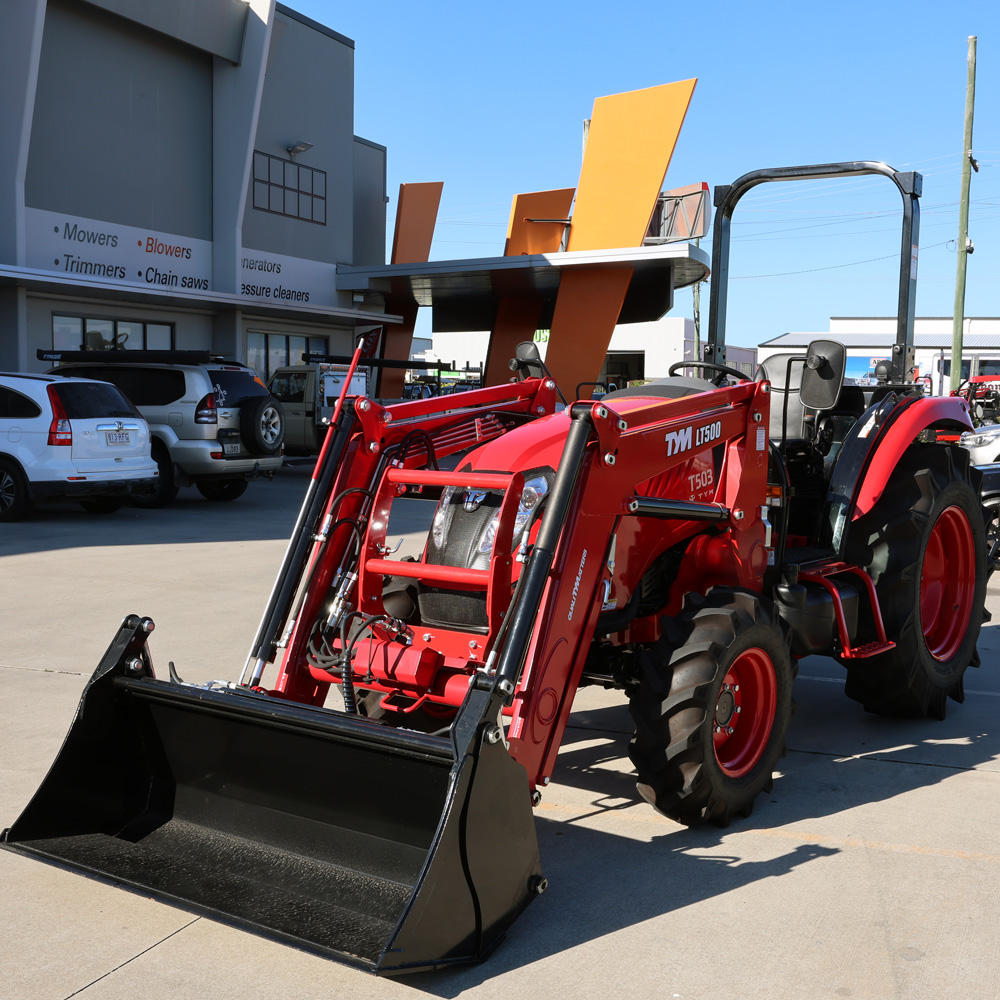

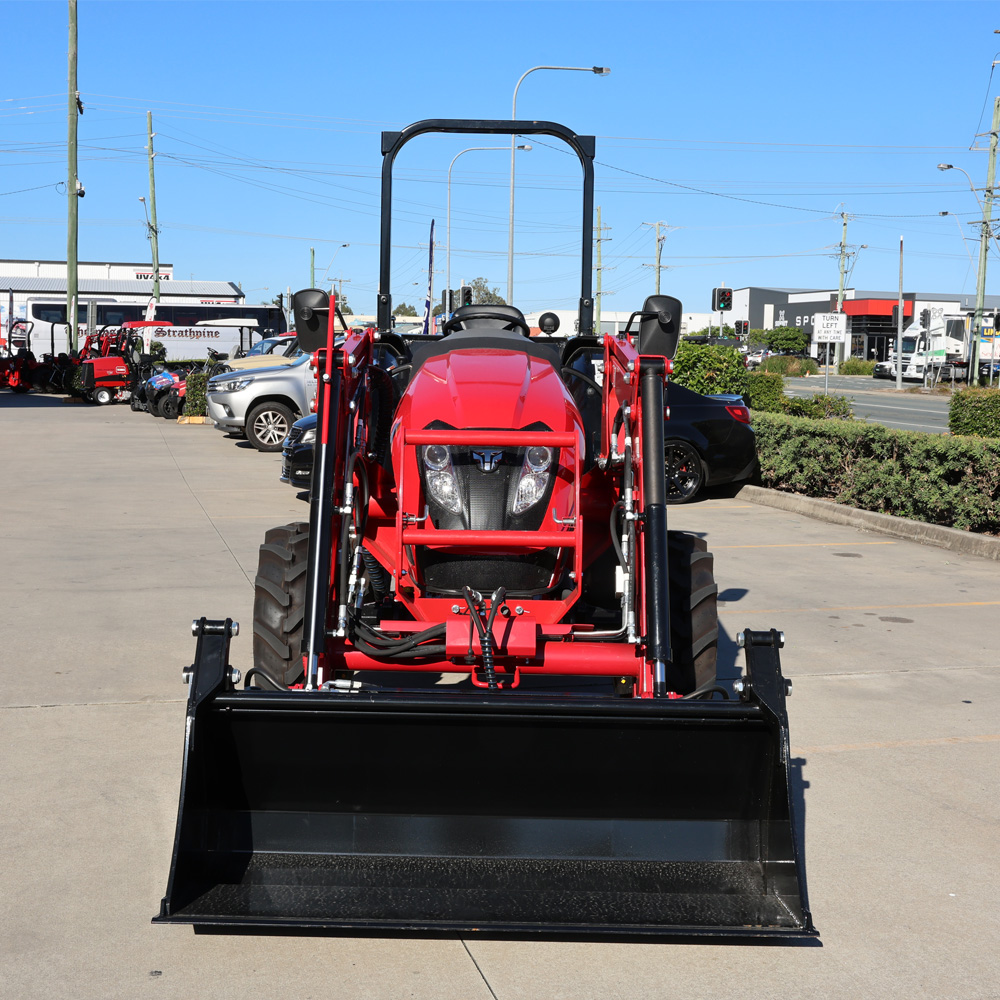

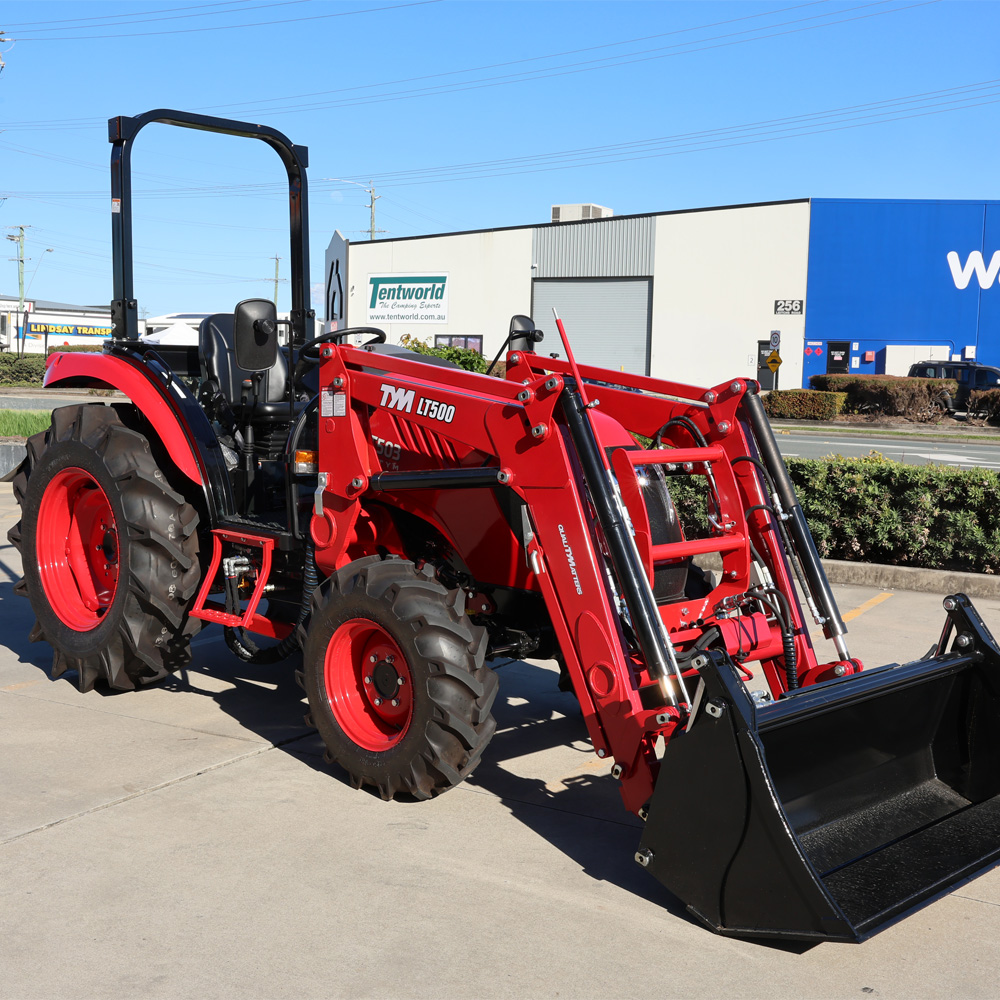

TYM T503 Manual Utility Tractor with 4in1 Loader
Original price was: $45,705.00.$39,990.00Current price is: $39,990.00.
TYM T503 Manual Utility Tractor with 4-in-1 Loader offers robust performance for handling various tasks with ease. It features a mechanical level lift design, a quick-detach loader, and a Euro-Hitch style connection for easy attachment of implements.
One only available at this price
Please use the ENQUIRE ABOUT THIS PRODUCT form to check availability before processing an order.
Description
TYM T503 Manual Utility Tractor with 4-in-1 Loader offers robust performance for handling various tasks with ease. It features a mechanical level lift design, a quick-detach loader, and a Euro-Hitch style connection for easy attachment of implements. The loader comes with a 4-in-1 bucket, offering versatility for scooping, carrying, and leveling. Operator comfort is prioritized with integrated joystick controls for precise handling and reduced fatigue. Its durable build and powerful functionality make it ideal for construction, farming, and material handling tasks.
Specifications
| SPECIFICATIONS | |
|---|---|
| Item | Details |

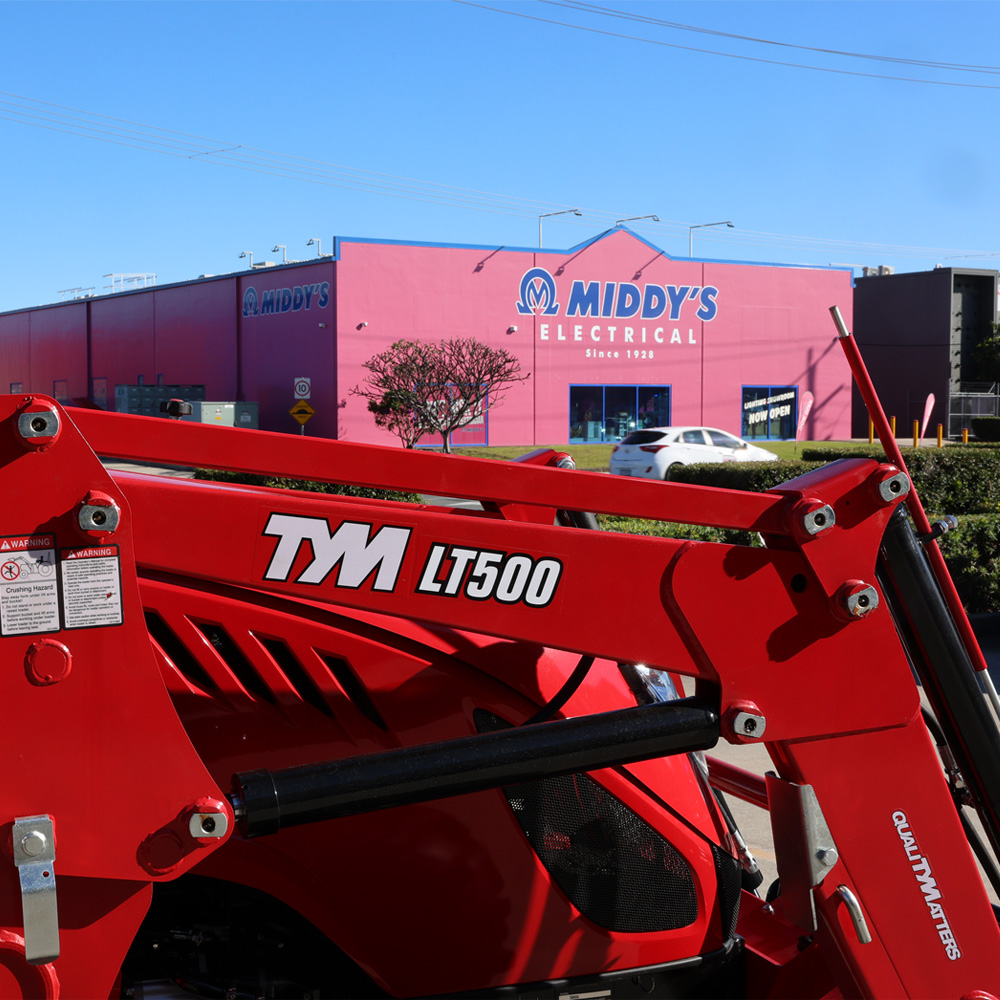

| Loader model | LT500 |
| Tractor models | T503 ROPS, T503 CAB, T503 HST ROPS, T503 HST CAB |
| A. Maximum lift height (mm) | 2,800 |
| B. Clearance with attachment level (mm) | 2,547 |
| C. Clearance with attachment dumped – 45 degrees (mm) | 2,074 |
| D. Reach at maximum height – 45 degrees (mm) | 519 |
| E. Maximum dump angle (degrees) | 70 |
| F. Reach with attachment on ground (mm) | 1,817 |
| G. Attachment rollback angle (degrees) | 48 |
| H. Digging depth below grade (mm) | 75 |
| J. Overall height in carry position (mm) | 1,584 |
| L. Depth of attachment – to back of inner shell (mm) | 540 |
| M. Height of attachment (mm) | 740 |
| N. Depth of attachment – to pivot pin (mm) | 774 |
| Lift capacity to full height of pivot pins (kg) | 966 |
| Breakout force at ground level, pivot pins (kg) | 2,002 |
| Rated operating load – counter weight on 3PL (kg) | 500 |
