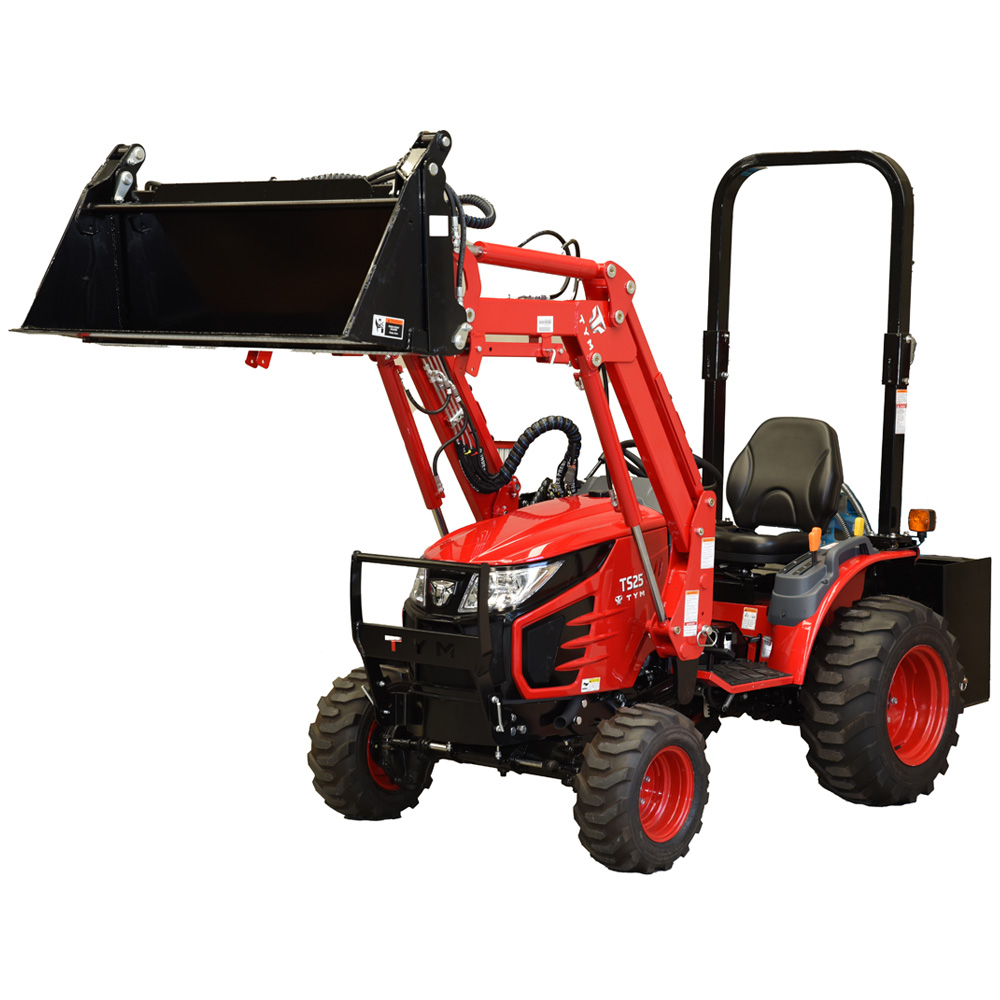

TYM TS25 Compact Tractor with 4in1 Loader
Original price was: $27,346.00.$24,900.00Current price is: $24,900.00.
TYM TS25 Compact Tractor with a 4-in-1 loader is a versatile and powerful machine designed for a wide range of tasks. Featuring a quick-detach loader with a 4-in-1 bucket, it enables functions like scooping, grabbing, and leveling.
Please use the ENQUIRE ABOUT THIS PRODUCT form to check availability before processing an order.
Description
TYM TS25 Compact Tractor with a 4-in-1 loader is a versatile and powerful machine designed for a wide range of tasks. Featuring a quick-detach loader with a 4-in-1 bucket, it enables functions like scooping, grabbing, and leveling. The tractor includes joystick controls for easy operation, a bucket level indicator, and a grille guard for protection. Its robust design and functionality make it ideal for landscaping, farming, and general property maintenance.
Specifications
| SPECIFICATIONS | |
|---|---|
| Item | Details |
| Loader model | TX25SL |
| Tractor models | TS25 |
| A. Maximum lift height (mm) | 1,939 |
| B. Clearance with attachment level (mm) | 1,758 |
| C. Clearance with attachment dumped – 45 degrees (mm) | 1,315 |
| D. Reach at maximum height – 45 degrees (mm) | 500 |
| E. Maximum dump angle (degrees) | 55 |
| F. Reach with attachment on ground (mm) | 1,390 |
| G. Attachment rollback angle (degrees) | 45 |
| H. Digging depth below grade (mm) | 115 |
| J. Overall height in carry position (mm) | 1,206 |
| L. Depth of attachment – to back of inner shell (mm) | 480 |
| M. Height of attachment (mm) | 461 |
| N. Depth of attachment – to pivot pin (mm) | 635 |
| Lift capacity to full height of pivot pins (kg) | 681 |
| Breakout force at ground level, pivot pins (kg) | 1,172 |
| Rated operating load – (counter weight on 3PL) (kg) | 300/200 |
Product Accessories
Products in the same category
-
Sale!
POLARIS 2024 Ranger XP 1000 HD EPS ADC
Original price was: $29,995.00.$26,995.00Current price is: $26,995.00. -
-
Sale!

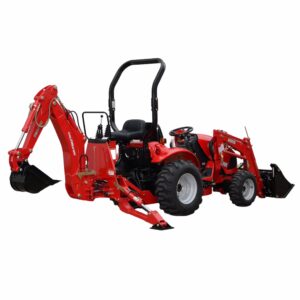

TYM T265 – 25hp HST Compact Tractor
